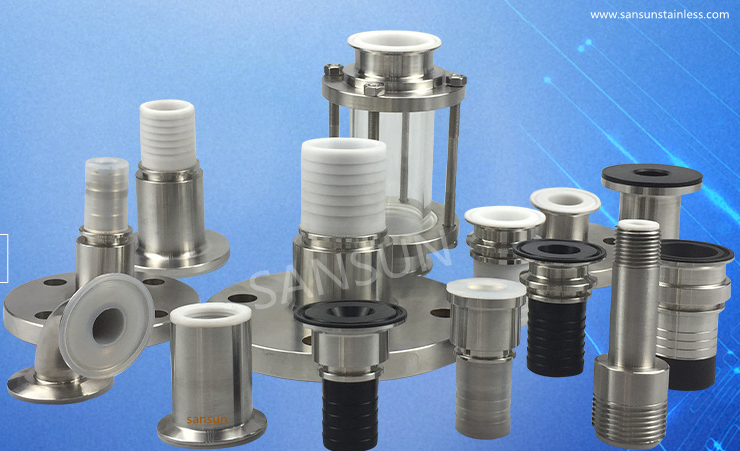

PFA Lined Fittings

PFA or Perfluoroalkoxy alkane are fluoropolymers. PFA, FEP, PTFE, the chemical properties are similar, but FEP can only be used below 200℃, and the big difference of PTFE is that the PFA allow the polymer to be melt-processed. This kind of resin can be directly processed into products by ordinary thermoplastic forming method. Suitable for making corrosion-resistant products, antifriction wear parts, seals, insulation and medical equipment parts, high-temperature wire, cable insulation, corrosion protection equipment, sealing materials, valve bushing, and chemical containers.

Performance of PEA lined fittings:

  1. A copolymer of polytetrafluoroethylene and polytetrafluoroethylene. The melt adhesion increases and the viscosity of the solution decrease, while the performance does not change compared with that of PTFE. This kind of resin can be directly processed into products by ordinary thermoplastic forming method.
  2. long-term use temperature -80–260 degrees, have excellent resistance to chemical corrosion, to all chemicals are corrosive, the lowest friction coefficient in the plastic, and good electrical properties, the electrical insulation is not affected by temperature, with “the king of plastic”.
  3. Its chemical resistance is similar to that of polytetrafluoroethylene, better than that of vinylidene fluoride.
  4. Its creep resistance and compressive strength are better than PTFE, tensile strength high, elongation of up to 100-300%. Good dielectric property and excellent radiation resistance. Flame retardant up to V0 grade
  5. Suitable for making corrosion-resistant parts, wear and tear resistant parts, seals, insulation and medical equipment parts.
  6. High-temperature wires, cables, insulation, corrosion protection equipment, sealing materials, valve bushes, and chemical containers.

CJan- Teflon hose fittings manufacturer, we insist on technical development, continuous product innovation to make our products to meet various industry’s international standard.

PFA lining has the following characteristics:

Teflon fittings using food grade PFA particles by high temperature melting and stainless steel products as a whole, the surface is smooth, with sanitary structure, resistant to full vacuum, the temperature range of -60℃ to +230℃.

Mainly used for conveying strong corrosive chemicals, hot air, hot oil, steam and so on.

The use of Teflon hose fittings matching with Teflon hose is widely used in pharmaceutical, cosmetic, chemical, acid and alkali corrosion etc.

More information, http://www.sansunstainless.com sansun@sansunstainless.com

Mini ball valve

Mini ball valve / stainless steel Mini ball valve / 304 stainless steel Mini ball valve / 316 stainless steel Mini ball valve.

Mini ball valve is suitable for PN 1.0~4.0MPa, working temperature is-29℃ to 180℃(These sealing ring is reinforced polytetraiuoroethylene) or-29~300℃
(the sealing ring is Para-polyphenylene) is used to cut of for connect the medium in the pipeline.Different materials are selected, which can be respectively applied to water, steam, oil, acetic acid and other media.

More information, http://www.sansunstainless.com sansun@sansunstainless.com

Professional Manufacturer of Sanitary Stainless Steel Cleaning Ball

Sanitary cleaning ball is divided into: rotating sanitary cleaning ball/fixed sanitary cleaning ball/horn type sanitary cleaning ball/rotating sanitary tank washing device/fixed sanitary tank washing device/horn type sanitary washing tank Connectors, etc., the connection forms are: welded, fast-mounted, and threaded.

Rotary cleaning ball: Rotary cleaning ball is a kind of rotating spray head, which uses detergent to clean and spray the tank comprehensively. Because this equipment uses less washing liquid under low pressure, it is an effective alternative to traditional fixed spray balls. The use of double ball bearings in the rotating head makes this type of cleaning ball series suitable for all sanitary and industrial cleaning applications, including cleaning tasks for all sanitary and industrial products such as storage tanks, reactors and containers.

Working principle of cleaning ball:

Rotary cleaning ball: The cleaning liquid rotates the cleaning ball nozzle through its own power, and the fan-shaped jet forms a vortex in the entire tank and the reaction vessel, thereby effectively removing the residual products on the surface of the container and achieving a cleaning effect.

Fixed cleaning ball: The cleaning ball passes through the nozzle small opening of the cleaning ball to form a jet that sprays around, thereby removing the residual product left on the surface of the container and achieving a cleaning effect.

For more detailed information, please visit our website http://www.sansunstainless.com or contact us at sansun05@sansunstainless.com.

saniatry cleaning ball

Manufacturer of Sanitary Air Relief Valve / Stainless Steel Pressure Release Valve

Stainless Steel Pressure Release Valve/ Sanitary Air Relief Valve/ Sanitary Tank Pressure Vacuum Relief Valve is designed to protect stainless tank working in safety. From pressure side, when the valve is normally closed and tank pressure exceeds the rated pressure on the outside of valve, the valve automatically opens and vents air to atmosphere. From vacuum side, when the valve is normally closed and there is vacuum in tank, the vacuum piston inside the valve opens automatically and draws air into the tank. In return, this keeps the pressure inside and outside the tank balanced.

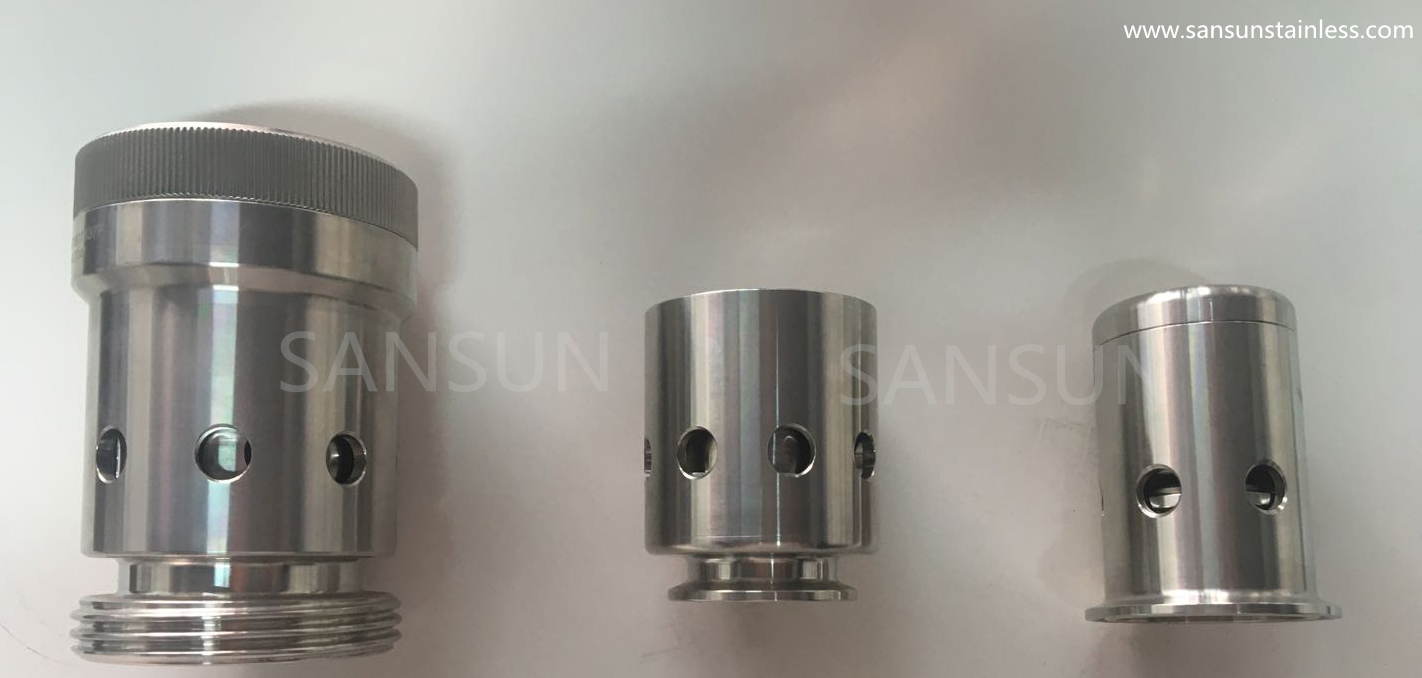

微信图片_20200518181743

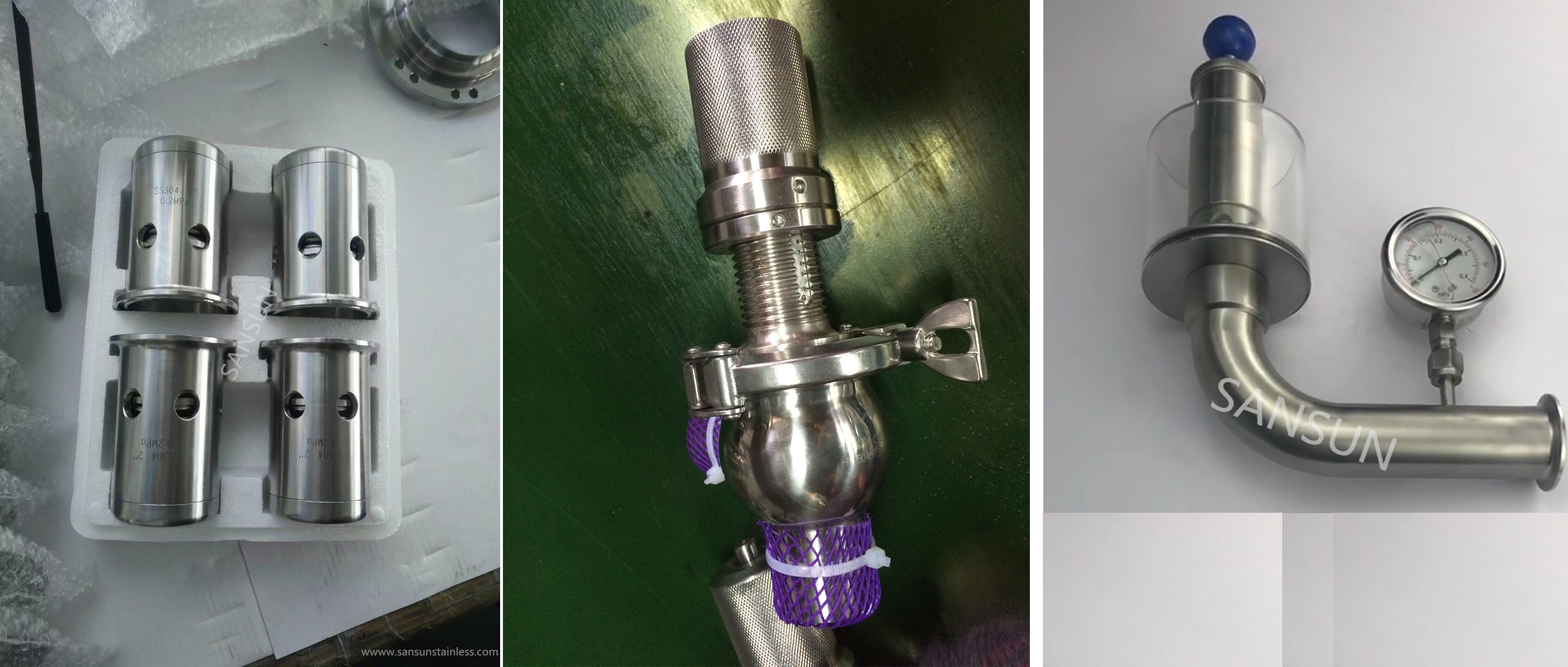

pressure relief valve

Sanitary Safety Exhaust Valve With Glass Window -Sanitary Air Relief Valve-Sanitary Air Relief Valve, Vent Valve-Sanitary Tank Pressure Vacuum Relief Valve, Vacuum Breaker-Sanitary Tank Pressure Relief Valve, Pressure Adjustable Type-Sanitary Safety Exhaust Valve With Glass Window-Air Vent Valve

Manufacturer of Sanitary Stainless Steel Tank bottom seat valve/Tank bottom valve

Sanitary Stainless Steel Tank bottom seat valve/Tank bottom valve. The Tank bottom valve seat valve is a pneumatically operated single seat valve,assembled at the bottom of tank, used in diary , food processing, beverage,pharmaceutical and fine chemical industries.

Manufacturer of shut-off single seat valve – divert single seat valve – tank bottom single seat valve – double seal mixproof valve – overflow single seat valve – tank bottom double seat valve – shut-off double seat mixproof valve – sanitary single seat divert valvetank-bottom-valve 1

More information: http://www.sansunstainless.com

Manufacturer Of Single seat valve / Sanitary single seat divert valve

Divert seat valve / single seat valve The single seat valve has been designed in observance of the strictest hygiene and reliability criteria to cover a wide range of applications as a shut-off valve or a diverter valve. Standard characteristics Connections from 1″ to 6″, EPDM, FKM, HNBR and PTFE gaskets. Temperatures: maximum 140 °C, minimum -10 °C. Maximum pressure 10 bar*.

Manufacturer of shut-off single seat valve – divert single seat valve – tank bottom single seat valve – double seal mixproof valve – overflow single seat valve – tank bottom double seat valve – shut-off double seat mixproof valve – sanitary single seat divert valve

More information: http://www.sansunstainless.com

Manufacturer-stainless-steel-sanitary-divert- seat- valve

sanitary-stainless-steel-mixproof valve

sanitary-stainless-steel-mixproof valve
This sanitary-stainless-steel-mixproof valve is a completely double sealing valve
sanitary-stainless-steel-mixproof valve is allows for the simultaneous process in the two bodies of the valve by provding interface between the two fluids
sanitary-stainless-steel-mixproof valve , the leakage chamber and the leakage detector can be cleaned by the seat lifting system

http://www.sansunstainless.com

sanitary-stainless-steel-mixproof valve

Stainless Steel Sanitary Air Release Valve with Pressure Gauge

Stainless Steel Pressure Release Valve With Pressure Gauge1

Stainless Steel Pressure Release Valve With Pressure Gauge3

Stainless Steel Sanitary Air Release Valve with Pressure Gauge  is a self-acting device, or could be manually operated to release air out of tanks. With a pressure gauge installed, it enables pressure to be monitored with a precise numeric value.

Application
VAR Series Stainless Steel Sanitary Air Release Valve with Pressure Gauge is a self-acting device, or could be manually
operated to release air out of tanks. With a pressure gauge installed, it enables pressure to be monitored with a precise
numeric value.
Materials
Body Materials: AISI-304 or AISI-316L
Cover: specialized tempered glass
Standard Design

Available in size: 1-1.5″- 4″
Tube (arm) size: from 0.5″ to 4″
Default pressure scale: 0-1mpa and 0-140psi
Installation: supposed to be installed laterally
Standard: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE
Connection: butt-welded, clamp, or others upon request
Technical Specification
Working Pressure:  14.5psi/ 1bar (standard), could be adjustable before production
Temperature range:   medium

http://www.sansunstainless.com
