Divert seat valve / Double seat valve / Reversing valve

Divert seat valve / Double seat valve / Reversing valve / Mixing proof valve.

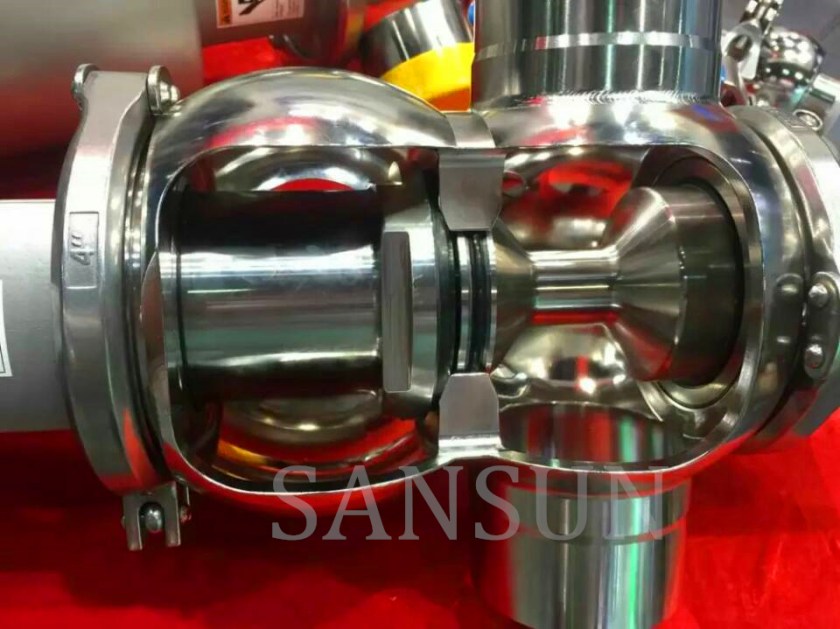

divert seat valve 02

divert seat valve

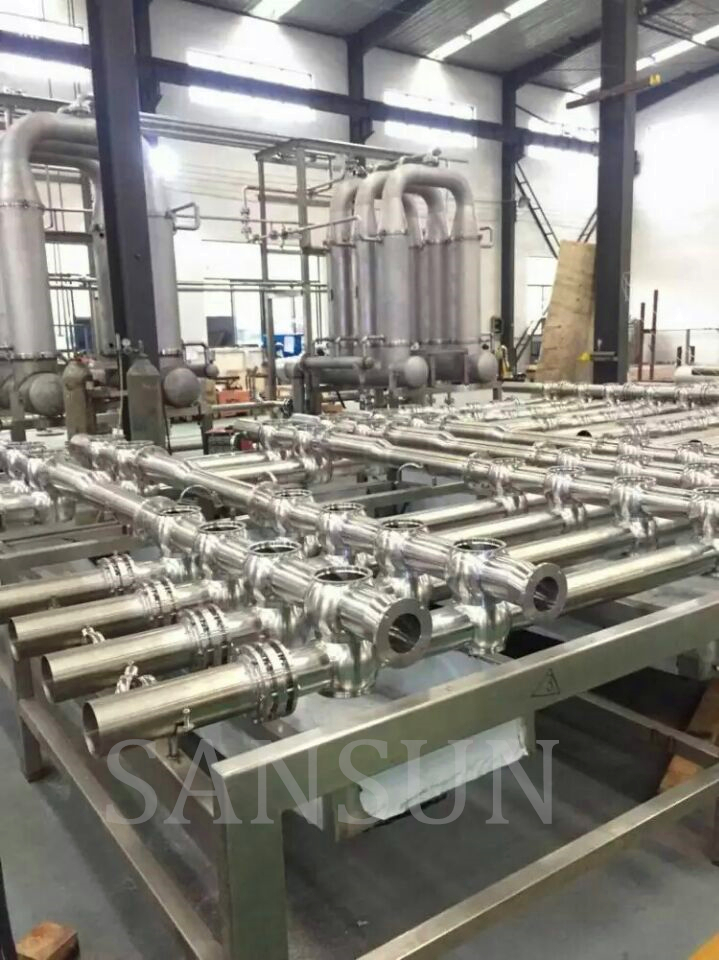

manifolds 1

The manifold can be assembled by containers with various functions together. It can improve working efficiency of system and control the whole production process. The manifold can choose any flexible hose pipe and jet deviator to change the flexure automatically. The kind of automatic operation is safe, flexible and effective. One set of manifold can served to multi pipelines. Meanwhile other containers are filled in or empty, operator can clean up any one of them. The liquid won’t be  polluted.

Size:1.5″-DN40 to 4″-DN100 Manifold:from 4 up to 48 valves Temperature:130℃ Pressure:10bar Air supply:5-7bar
◆With a simple C-TOP on every pneumatic actuator (solenoids and sensors)
◆With a C-TOP of AS-I field bus
◆Without C-TOP, solenoids are installed in the control panel and sensors on the pneumatic actuator
◆PLC control
◆The states of the valves can be displayed on the control panel
