Manufacturer Of Mixproof Valve

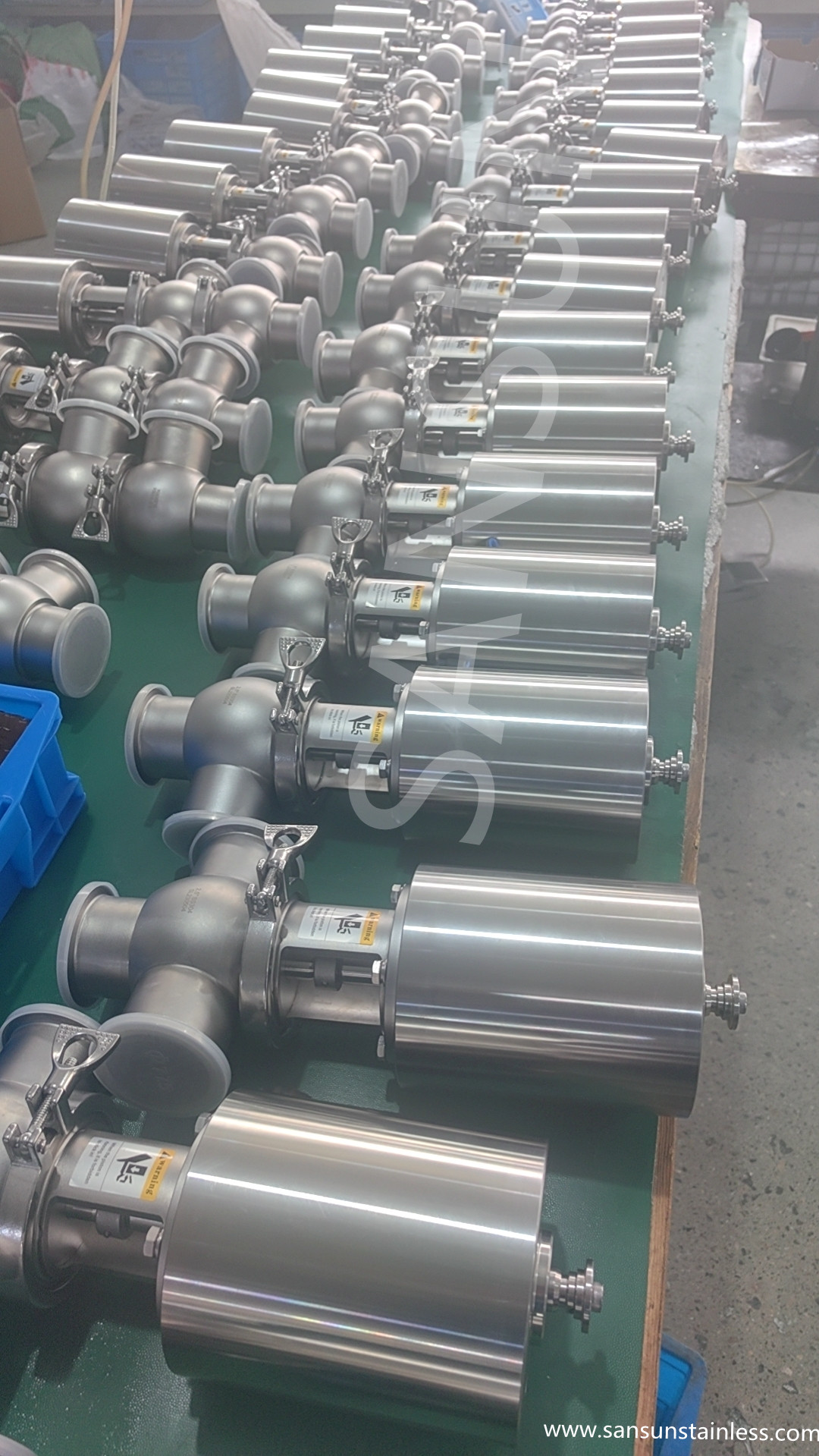

Shut-off Double Seat Mixproof Valve

Are you searching for a reliable and efficient mixproof valve for your hygienic applications in the food, cosmetic, pharmaceutical, dairy, beverage, or beer brewing industries? Look no further than SANSUN’s mixproof valve, a pneumatic shut-off double seat valve designed for optimal performance.

The mixproof valve features a leakage chamber, positioned between the two seats, which ensures a safe interface between two liquids, typically including a CIP solution (cleaning agent). The chamber is easily cleaned through the CIP nozzle located in the lantern. With this valve, you can simultaneously flow two products or fluids without the risk of cross-contamination. It operates spillage-free, complying with stringent hygienic standards.

Designed in accordance with EHEDG standards, this mixproof valve guarantees no leakage during the opening and closing processes. It incorporates a balanced lower seat and a single-acting pneumatic actuator for efficient operation. The valve is easily assembled and disassembled by loosening a clamp fastener. The open lantern design allows for visual inspection of the shaft sealing, ensuring smooth functionality. Additionally, the body is 360º adjustable for enhanced flexibility.

Our mixproof valve is constructed using high-quality materials. Parts in contact with the product are made of stainless steel AISI 316L (1.4404), while other stainless steel components are crafted from AISI 304 (1.4301). The gasket is made of EPDM, in compliance with FDA and EC 1935/2004 regulations. The valve boasts excellent surface finishes, with a bright polish Ra ≤ 0.8 μm internally and a matte finish externally.

To cater to specific requirements, we offer various options for gaskets, including FPM and HNBR. We also provide different connection types, a C-TOP+ control unit, external position sensors, and the option for an internal surface finish of Ra ≤ 0.5 μm.

Our mixproof valve ensures safe and efficient flow management. Its double-seat design minimizes the risk of product contamination and guarantees spillage-free operation. The valve incorporates double lip seals for added protection and operates in a safe and hygienic manner. Maintenance is made easy and fast with the top-loaded design, and the valve does not require any adjustable components. It also features built-in leakage detection on all seals for peace of mind. In terms of cost-effectiveness, a single Unique Mixproof valve can often replace multiple other types of valves, saving you both time and money.

Choose SANSUN’s mixproof valve for reliable and efficient flow management in your hygienic applications. Our commitment to quality and customer satisfaction ensures that you receive a top-of-the-line product that meets your specific needs.

Shut-off Double Seat Mixproof Valve , Divert Single Seat Valve,Shut-off Single Seat Valve,

Please find more information in our website :

Sanitary Diaphragm Valve with Stainless steel pneumatic actuator

Are you looking for a high-quality, reliable and efficient sanitary valve for your food, cosmetic, pharmaceutical, dairy, beverage or beer brewing industry? Look no further than the SANSUN sanitary stainless steel diaphragm valve with pneumatic actuator and clamp connections.

Our diaphragm valve is designed to provide excellent flow control and can be used for both open/close duties and sampling in various applications, including biological systems, laboratory engineering, and more. It operates pneumatically via a plastic or stainless steel actuator, providing reliable and efficient performance.

The body of the valve is made from ASTM A351 CF3M (1.4435) as default, AISI 316L Forged Body (1.4435), ASME BPE 316L, or 1.4435-BN2 (316L) Fe<0.5% Forged Body. The seat material for the diaphragm is made from EPDM+PTFE and has the option for a single EPDM, EPDM+PTFE (2-piece), or Viton (FPM) diaphragm. The end connections are butt-welded or sanitary tri-clamp, making it easy to install and use.

The maximum working pressure is normally closed EPDM 87psi (6bar), PTFE 65psi (4.5bar) as default, normally closed EPDM 116psi (8bar), PTFE 87psi (6bar) as an option, and normally open and double action EPDM 116psi (8bar), PTFE 87psi (6bar). The working temperature ranges from -22°F to 302°F/-30 to 150℃ (Depending on Seal Material) (Stainless Actuator) and -22°F to 266°F/-30 to 130℃ (Depending on Seal Material) (Plastic D27Actuator).

The internal finish of the valve is Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 25µin as default, while the external finish is Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default. The pneumatic actuator types are plastic actuator or stainless actuator, and the actuator operation types are normally closed (NC) – air to open and spring to close; normally open (NO) – air to close and spring to open; and air to air (AA) – air to open, air to close. The actuator air pressure is 58 ~ 102psi (4 ~ 7bar).

Our valve also features a unique seal design with no dead angles, an EHEDG certified sealing concept, and a stainless steel bonnet with sanitary internals. It has a sanitary surface finish with Ra < 0.4µm or EP (SF1 and SF4), and a manual handle and pneumatic actuator that are interchangeable. There is also a wide selection of body types to choose from, including U type/T type/Multiport.

All of our valves are 100% hydraulic tested and inspected, and meet the standards of ASME BPE, 3A, DIN, ISO / IDF. We hold certificates for 3A, FDA, and PED 97/23/EC.

In addition, our valve comes with a range of operational options, including plastic handwheel, stainless handwheel, pneumatic plastic actuator, pneumatic stainless steel actuator, electric actuator, and units for intelligent control and indication, such as proximity switches (position sensor), limit stroker, C-top control, and IL-top control (positioner).

More information,

sanitary steam trap

How does a sanitary steam trap work

Pressure builds up inside the bellows expanding it and driving the attached plug (ball or conical tip) into the orifice at the trap outlet. The trap will stay in that closed position until the bellows temperature falls below saturation temperature.

What is sanitary steam?
Clean steam is a sterile, safe steam that can be used to sterilize and clean items in a cleanroom or other pharmaceutical or medical setting with strict cleanliness criteria. The industry uses clean steam—rather than standard steam—for higher levels of steam sterilization and humidification

Where should steam traps be installed?
Locate the steam trap below the lowest condensate discharge point of the equipment. Never install a rise in the pipe ahead of a steam trap. Check valves should be installed after the steam traps in most applications.
