Stainless Steel Sanitary Air Release Valve with Pressure Gauge

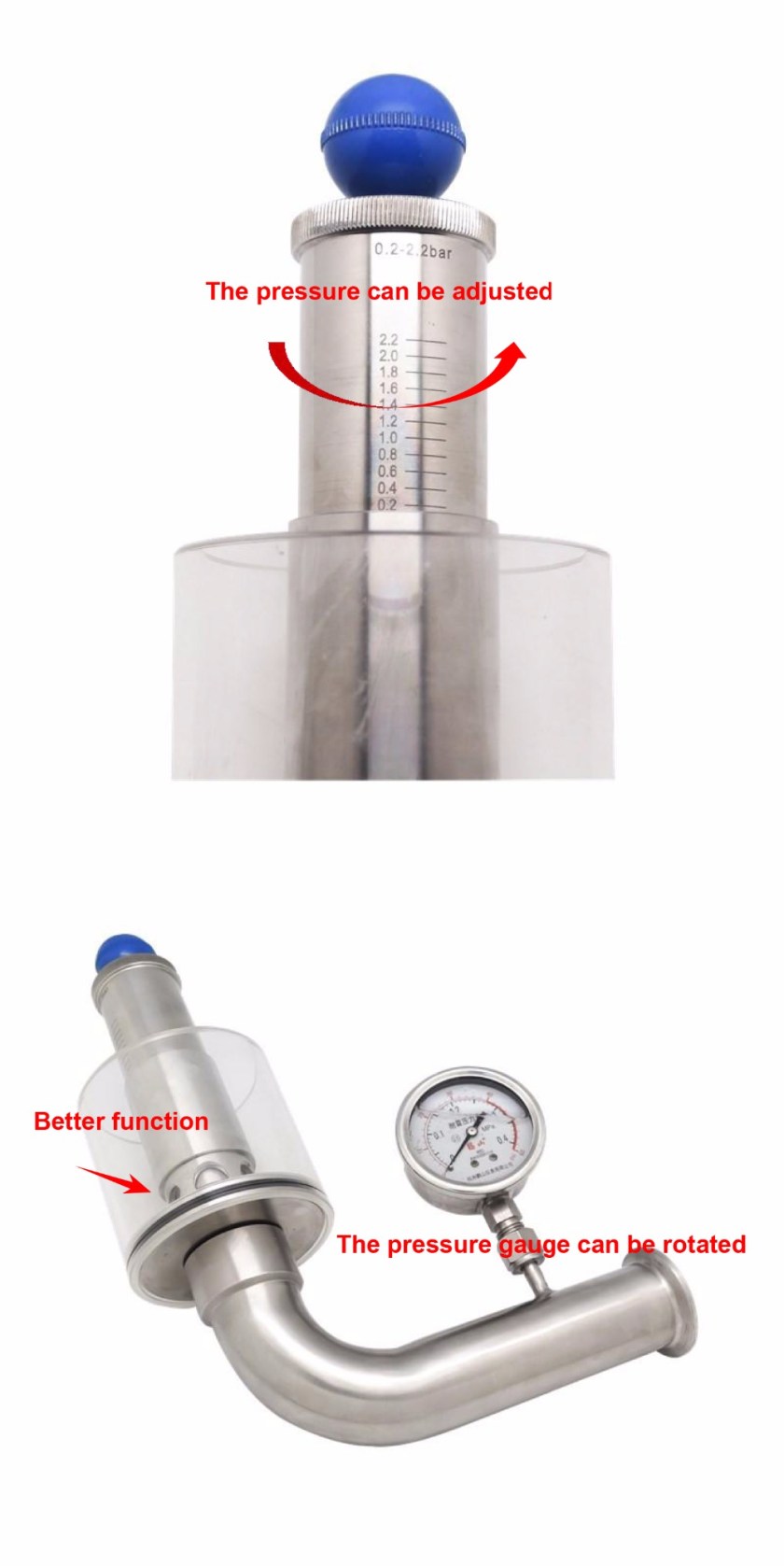

Stainless Steel Pressure Release Valve With Pressure Gauge1

Stainless Steel Pressure Release Valve With Pressure Gauge3

Stainless Steel Sanitary Air Release Valve with Pressure Gauge  is a self-acting device, or could be manually operated to release air out of tanks. With a pressure gauge installed, it enables pressure to be monitored with a precise numeric value.

Application
VAR Series Stainless Steel Sanitary Air Release Valve with Pressure Gauge is a self-acting device, or could be manually
operated to release air out of tanks. With a pressure gauge installed, it enables pressure to be monitored with a precise
numeric value.
Materials
Body Materials: AISI-304 or AISI-316L
Cover: specialized tempered glass
Standard Design

Available in size: 1-1.5″- 4″
Tube (arm) size: from 0.5″ to 4″
Default pressure scale: 0-1mpa and 0-140psi
Installation: supposed to be installed laterally
Standard: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE
Connection: butt-welded, clamp, or others upon request
Technical Specification
Working Pressure: 14.5psi/ 1bar (standard), could be adjustable before production
Temperature range: medium
