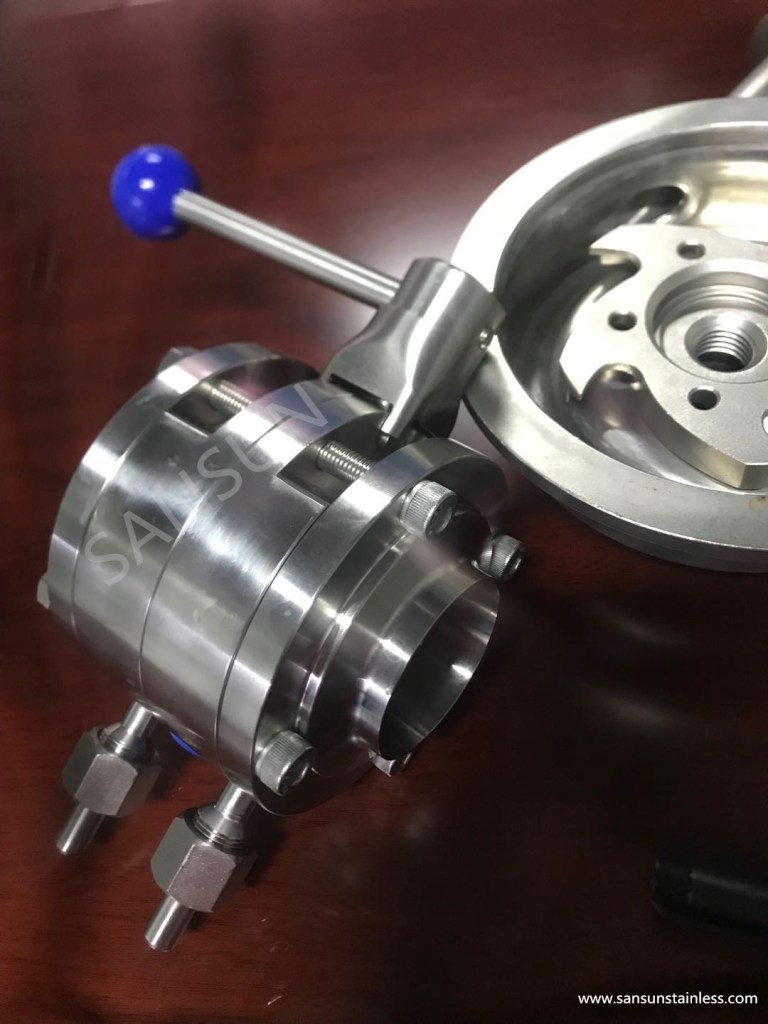

Mixproof butterfly valve is ready for our clients.
The mixproof butterfly valve as a process element for the separation of media, is suitable for a variety of applications:
●In CIP systems, for separating CIP cleaning fluid
●In flush-out processes
●In water management
●Part of pipeline separates material
●In CIP/gas management (breweries)
●Storage tanks for separating product/CIP
● As CIP reflux valve in the the manifold
● Especially for liquids and no suspension / gas medium particles.

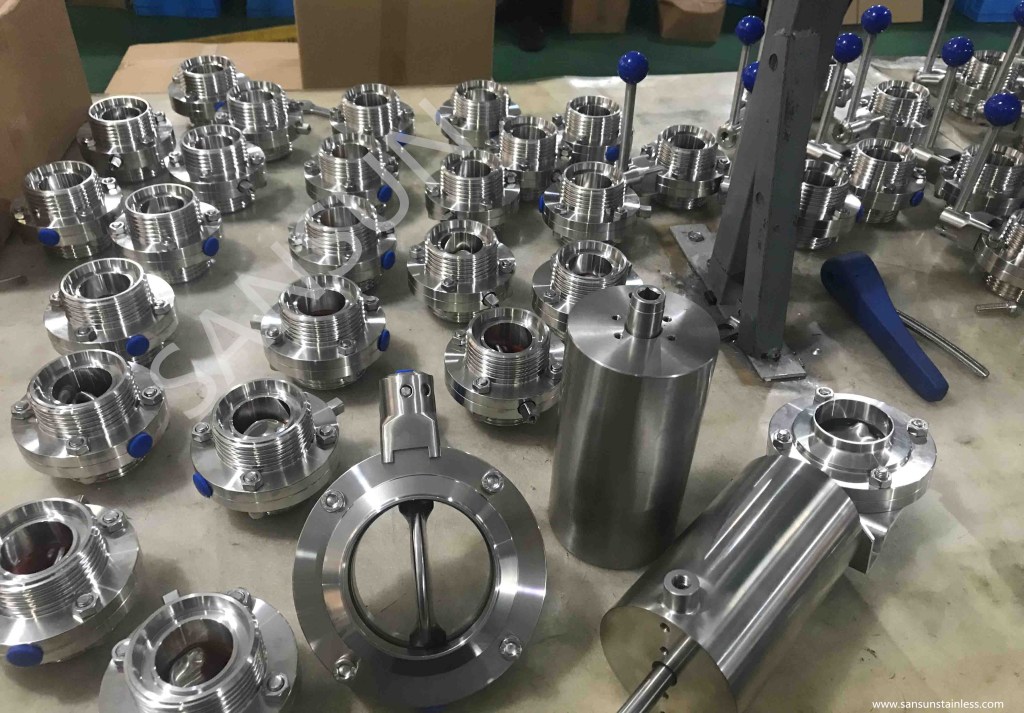

Double seat butterfly valves can be used in food-processing, pharmacy and chemical industries. The Butterfly Valve offers an easy and safe separatation of products and prevents accidental mixing in case of gasket damage. It is often used to isolate materials that require safe separation and CIP Liquid in a single point (not in manifolds), or at the end of a manifold (e.g. CIP return) or entry of a CIP solution into a tank (through a cleaning ball).
Technical Specifications
Size: DN25-DN100, 1″- 4″
Material: 1.4404 / 1.4301,304 / 316L
Maximum Temperature: -10 ℃ – 130 ℃
Maximum Pressure: 10bar
Operation: Pneumatic/ Manual interchangeable
Control Box: C-TOP Basic type, C-TOP + AS-I communication
Seal: EPDM (standard) FPM / SILICON / NBR, FDA177.2600
Both sides of the valve body are interchangeable (no matter what connection)
Contact With Material: AISI 316L / 1.4404
Connection: SMS, RJT, DIN, 3A, ISO
More information, http://www.sansunstainless.com sansun@sansunstainless.com
sanitary-stainless-steel valves and fittings manufacturer
