Professional Manufacturer of Sanitary Air Exhaust Valve

The sanitary exhaust valve is used to maintain the normal pressure level in the system. If this value is exceeded in a storage tank or pipeline, the equipment helps to discharge quickly. These equipments are usually purchased and installed in the food industry enterprises. This is based on the technical process. In the fermentation process of liquid or emulsion, high pressure will be formed in the production process of beer, natural waffle, alcoholic beverages and some seasonings.

The pressure of the exhaust valve is adjusted by a screw cap. The pressure value can be read on the scale on the lower edge of the lid. Devices without pressure limiters can be adjusted by moving the scale.

If the pressure in the reservoir exceeds the set spring resistance, the valve diaphragm will rise. The excess pressure is discharged through the gas inlet into the container, which has been previously filled with clean water. At low temperatures, glycerol can be used to dilute water by one third (by volume).

The sanitary exhaust valve is very professional. A professional exhaust valve is used on the CCT tank to control and release the pressure, allowing you to monitor the fermentation process using a glass filled with liquid (water). The sanitary exhaust valve is completely made of AISI 304 stainless steel, fully foldable and easy to clean.

Sanitary air release exhaust valves are widely used to protect production lines from pressure drops and maintain the set pressure in the production area. This equipment is particularly widely used in the beer industry; during the fermentation process, a certain pressure must be maintained so as not to destroy the technology. Use when you do not want to collect carbon dioxide.

For more detailed information, please visit our website http://www.sansunstainless.com or contact us at sansun05@sansunstainless.com.

Manufacturer Of Pressure Relief Valves for brewing

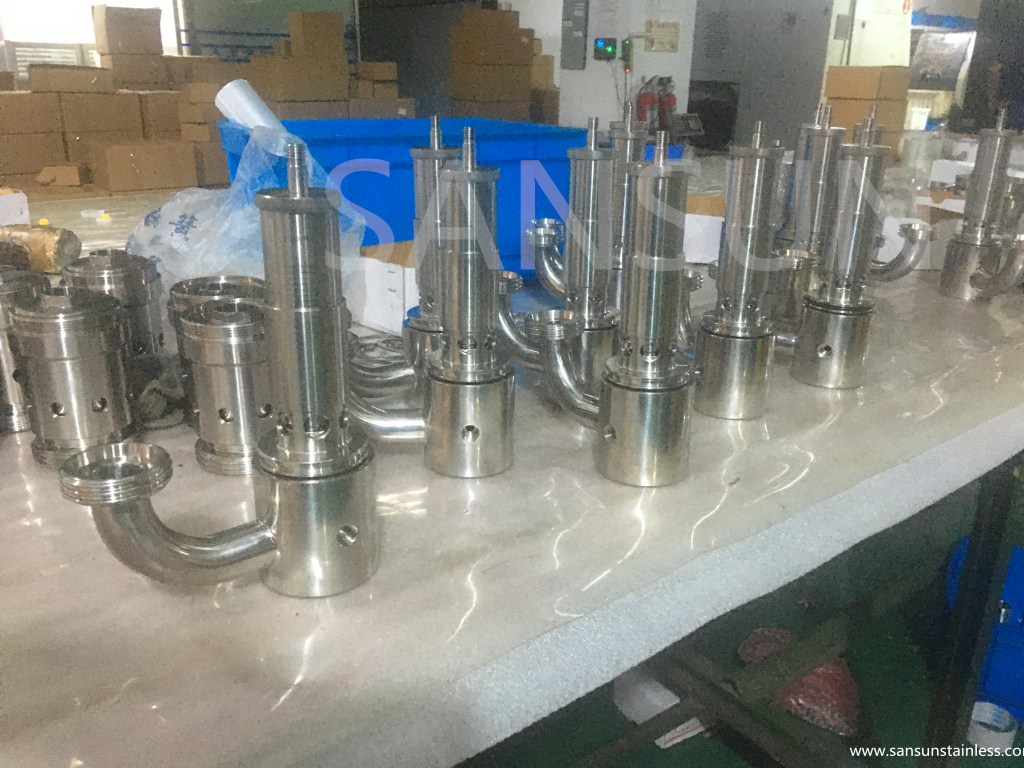

Our Pressure Relief Valves for brewing was in the assembly process…

We also produe the Spunding valve / Bunging valves / Bunging Relief Pressure Device Regulating Valves for brewing equipment , distilling equipment .

Bunging Relief Pressure Device Regulating Valves,
Brewery Pressure Relief Valves “
Sanitary Air Relief Valve
Sanitary Air Pressure Relief Valves
Sanitary Air Relief Valve, Vent Valve
Sanitary Tank Pressure Vacuum Relief Valve, Vacuum Breaker
Sanitary Tank Pressure Relief Valve, Pressure Adjustable Type
Sanitary Safety Exhaust Valve With Glass Window
Air Vent Valve
Stainless Steel Sanitary Safety Relief Valves

More Information: http://www.sansunstainless.com , sansun@sansunstainless.com

Manufacturer Of Bunging Valve / Spunding valve

Manufacturer Of Bunging Valve for brewery tanks

Manufacturer Of Spunding valve for brewery tanks

Manufacturer Of Bunging Relief Pressure Device Regulating Valves for brewery tanks

Spunding valves (Bunging valves) are variable pressure relief valves, commonly used on brewery tanks to assist with carbonation / maintenance of desired CO2 levels, and release of excess gas during fermentations. They are not necessarily suitable as safety pressure relief valves and you should ensure any tanks are operated within their specified SWP ( safe working pressure) and have adequate pressure and vacuum relief fittings.

Our Spunding valves have a 90 degree bend with horizontal 1.5-inch tricamp connection, and a pressure gauge. Adapters , tees, etc for other connection types can be supplied. Standard range is 0.2 to 2 bar (3 to 30 psi), with accuracy around 5%. Other ranges available to special order. They are graduated in 0.2 bar increments, and fitted with a clear plastic anti-spray shield.

Bunging pressure device, It has marked scale on the valve, so you could know the pressure you set.
bunging pressure device,The pressure of relief valve could be observed. In its using process, the white tray around the valve will be full of water. when it begins release pressure, we could water the bubble will occur. So,you could have a clear knowledge when the pressure is released.
Disadvantage:
bunging pressure device, It will doesn’t work for negative pressure.

Stainless Steel Sanitary Air Relief Valve with Pressure Gauge It is a self-acting device, or could be manually operated to release air out of tanks. With a pressure gauge installed, it enables pressure to be monitored with a precise numeric value.

Manufacturer Of Sanitary Air Relief Valve for brewery , Sanitary Air Pressure Relief Valves,Sanitary Air Relief Valve, ,Vent Valve,Sanitary Tank Pressure Vacuum Relief Valve, Vacuum Breaker,Sanitary TankPressure Relief Valve, Pressure Adjustable Type,Sanitary Safety Exhaust Valve With Glass Window,Air Vent Valve ,Stainless Steel Sanitary Safety Relief Valves.

http://www.sansunstainless.com

Stainless Steel Pressure Release Valve With Pressure Gauge
