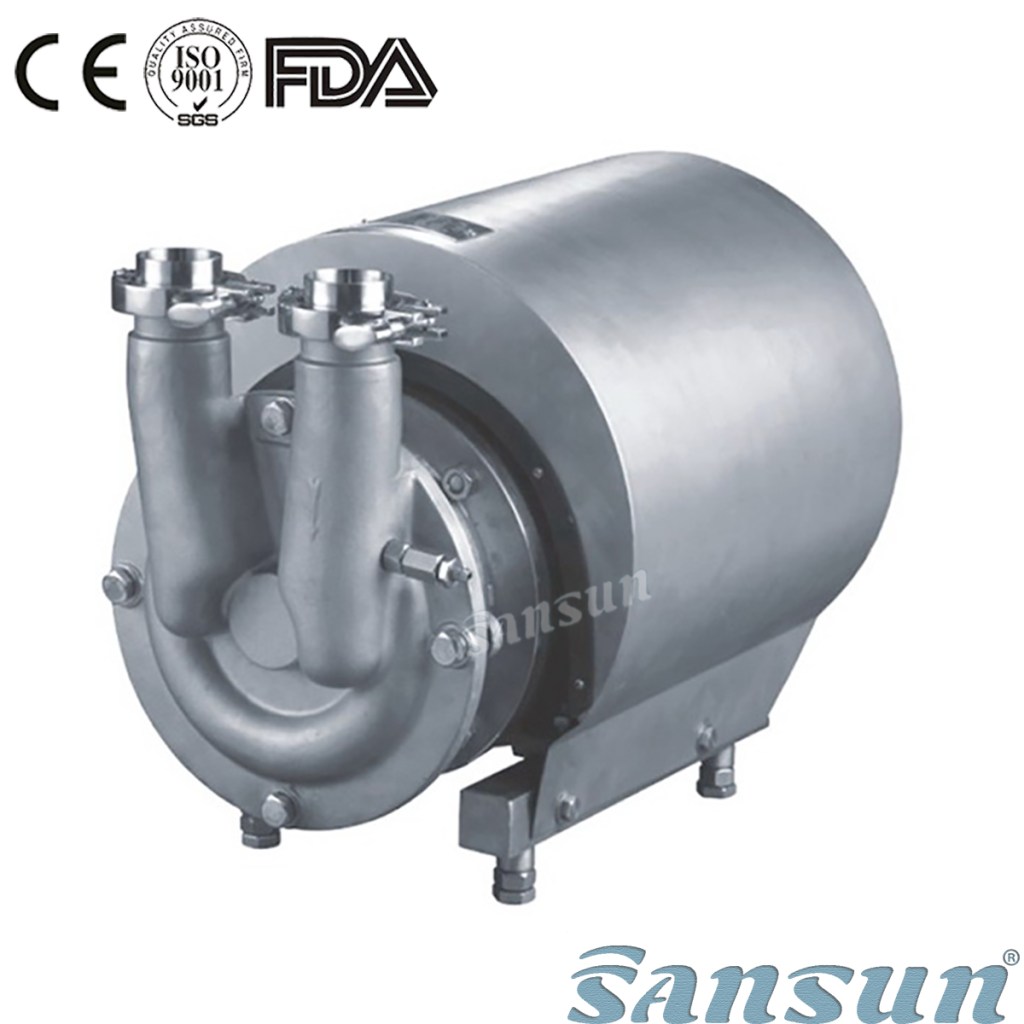

Features of sanitary self-priming pump: The sanitary self-priming pump is a highly efficient and economical centrifugal pump that meets sanitary requirements during the treatment process, is soft and does not damage the material, and has chemical resistance. All parts in contact with materials are made of SUS304 and SUS316L. The standard configuration includes housing and pump feet. The sanitary self-priming pump is a high-pressure pump designed on the basis of a standard centrifugal pump. It is suitable for high inlet pressure occasions and can withstand up to 40bar inlet pressure. The pump is designed with an open impeller, internal mirror polished, no dead ends, no residue after cleaning, and low noise.
Overview of sanitary self-priming pump: The application of modern new technologies and new concepts to continuously innovate the production process of centrifugal pumps. The pride of a new generation of sanitary SCP series centrifugal pumps. Because it meets GMP requirements and traditional quality. Provide users with better pump performance, higher efficiency, longer service life, and users benefit more.
Sanitary self-priming pump application: Medicines: infusion, distilled water, high-purity water, Chinese medicine liquid with particles of 3-6 mm, extract; cosmetics: dyes, alcohol, essential oils; dairy products: whey, cream, milk, sugar liquid; beverages: alcohol, liquor , Beer, wort, fermentation broth, fruit juice drinks, beverages with particles; others: confectionery, baking, chemical industries, etc.
Rotor pumps are also called colloid pumps, lobe pumps, three-lobe pumps, universal transfer pumps, etc., and rotor pumps are positive displacement pumps. It achieves the purpose of transporting fluid by means of the periodic conversion of multiple fixed-volume transport units in the working chamber. The mechanical energy of the prime mover is directly converted into the pressure energy of the conveying fluid by the pump. The flow rate of the pump depends only on the volume change value of the working chamber and its change frequency per unit time, and (theoretically) has nothing to do with the discharge pressure; the rotor pump is working In the process, a pair of synchronously rotating rotors is actually used to achieve the purpose of conveying materials.
The coupling is assembled as a whole to make the volume smaller (the length can be shortened by 100-250mm), reduce the footprint, compact structure, stainless steel outsourcing, mirror polishing, beautiful appearance, high-grade, and avoid the peeling of the original paint. Performance optimization: the use of the coupling as a whole is assembled to reduce the power consumption of the elastic coupling, noise and wear replacement to improve work efficiency, and obtain the highest efficiency, the smallest internal sliding and a longer service life.
The rotor pump relies on two synchronous and counter-rotating rotors (the number of teeth is 2-4) to generate suction (vacuum) at the inlet during the rotation, thereby sucking in the material to be transported. The two rotors divide the rotor chamber into several small spaces and run in the order of a→b→c→d. When running to position a, only chamber I is filled with medium; when reaching position b, part of the medium is closed in chamber B; when reaching position C, chamber A is also closed with medium; when reaching position d, chamber A and chamber Ⅱ The chambers are connected, and the medium is delivered to the outlet. In this way, the medium (material) is continuously transported out.
Food and beverages: dairy, latex, chocolate, syrup, cheese, wort, beer, soda
Fruit concentrates: pudding, jam, jelly, tomato sauce
Paste products: fats and oils, etc.
Cosmetics: creams, detergents, hair gels, perfume oils, etc.
Drugs: extract, emulsion, pill slurry, etc.
Chemical industry: dyes, fats, solvents, resins and polymers

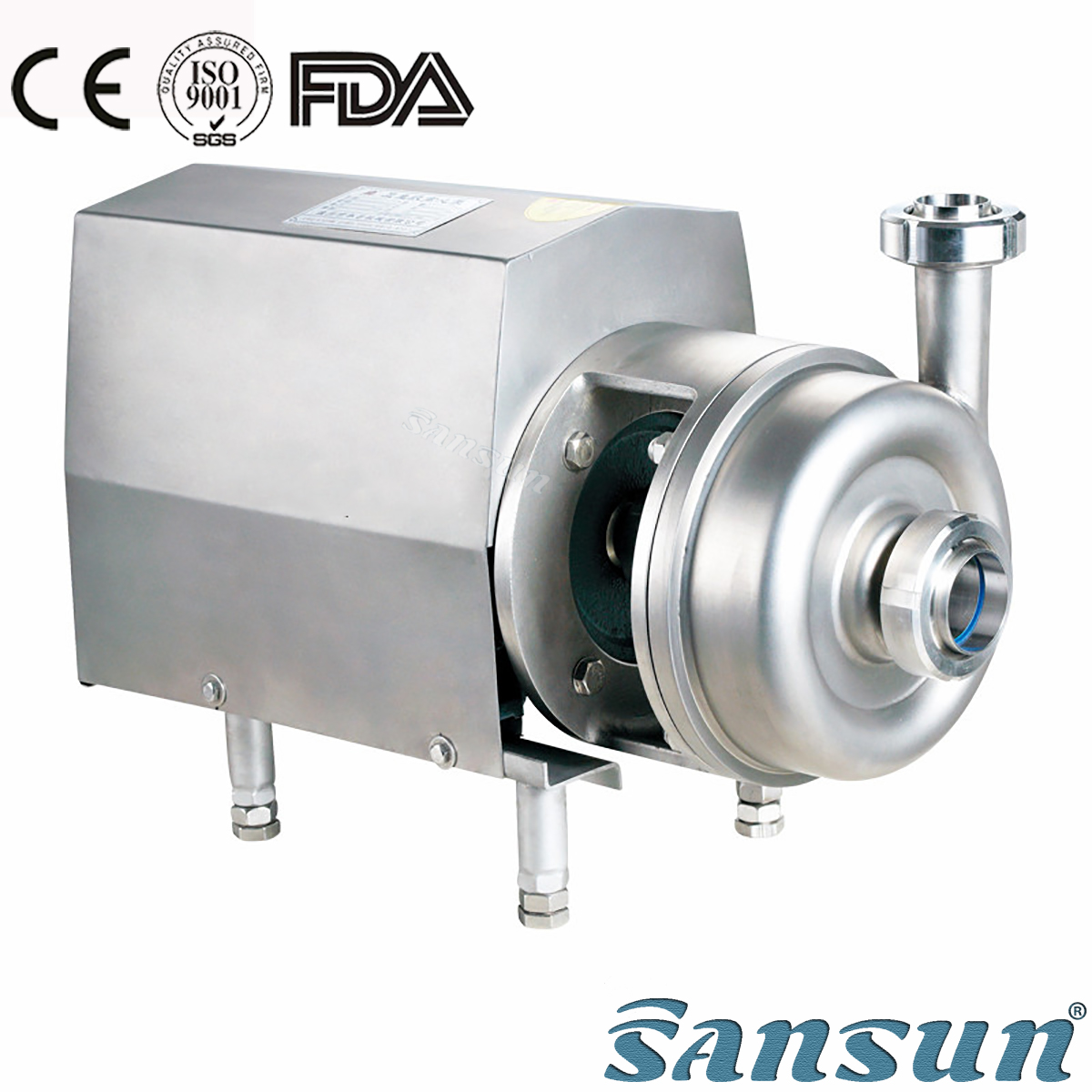

Sanitary centrifugal pump is a simple piece of equipment. Its purpose is to convert the energy into speed or kinetic energy and pressure of the pumped fluid, and then enter an electric motor or engine. For pumps that change in energy, the impeller and volute are divided into two main parts.
The rotational driving energy of the impeller is converted into a part of kinetic energy. The volute is where the kinetic energy of the stationary part is converted into pressure. Mainly based on the defects of ordinary single-stage centrifugal pumps with large flow and low head, it is specially designed as a single-stage centrifugal pump with small flow and large head.
The impeller of the centrifugal pump is modified and designed with a small passage to reduce the flow. The pump has excellent performance, reasonable structure, small volume and reliable use.
Centrifugal pumps are suitable for transporting clean liquid materials without solid particles, pure water and other medical products, beverages, and alcohol.
Sanitary rotary Lobe Pump with ABB Motor for a Chocolate

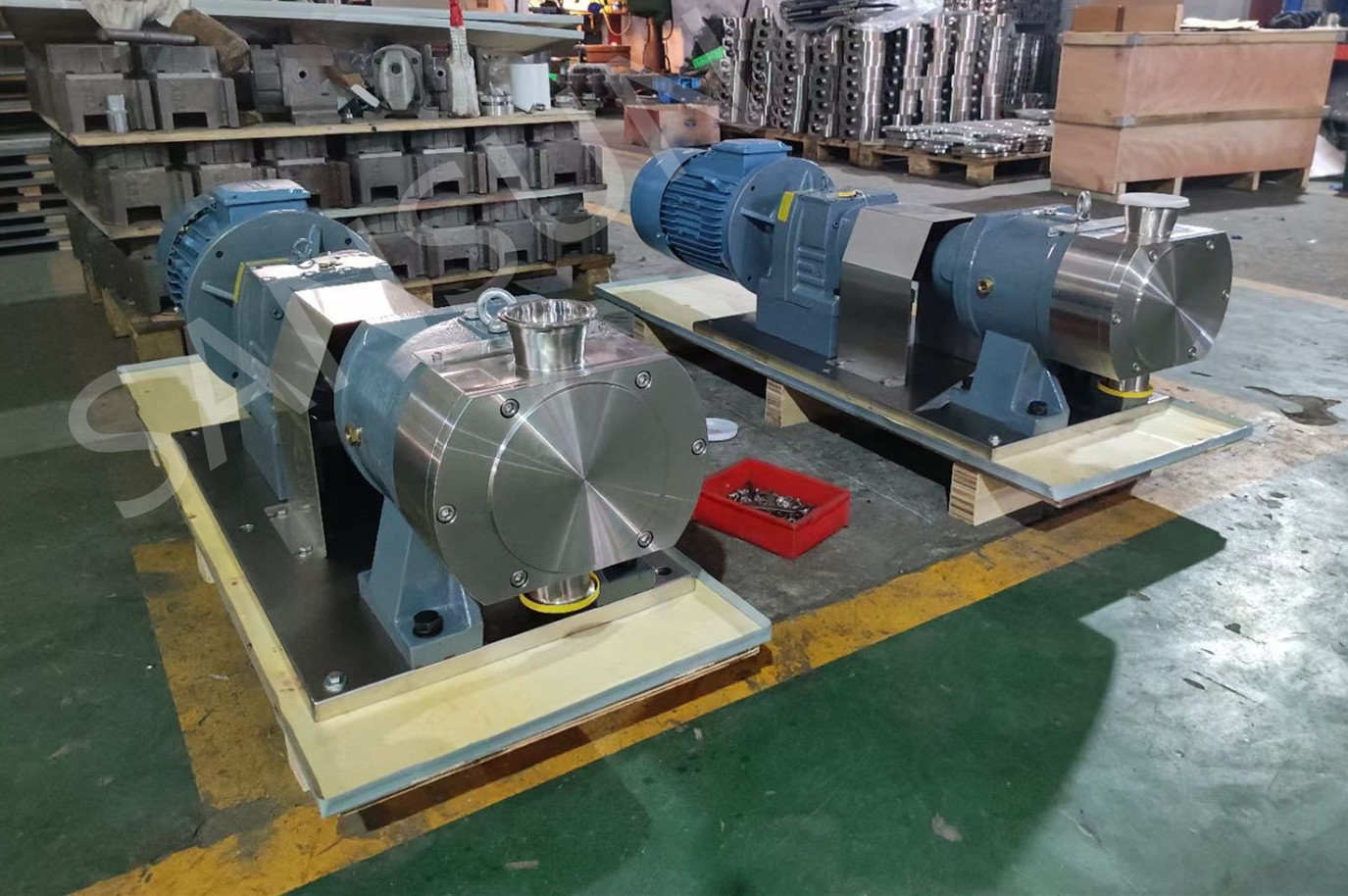

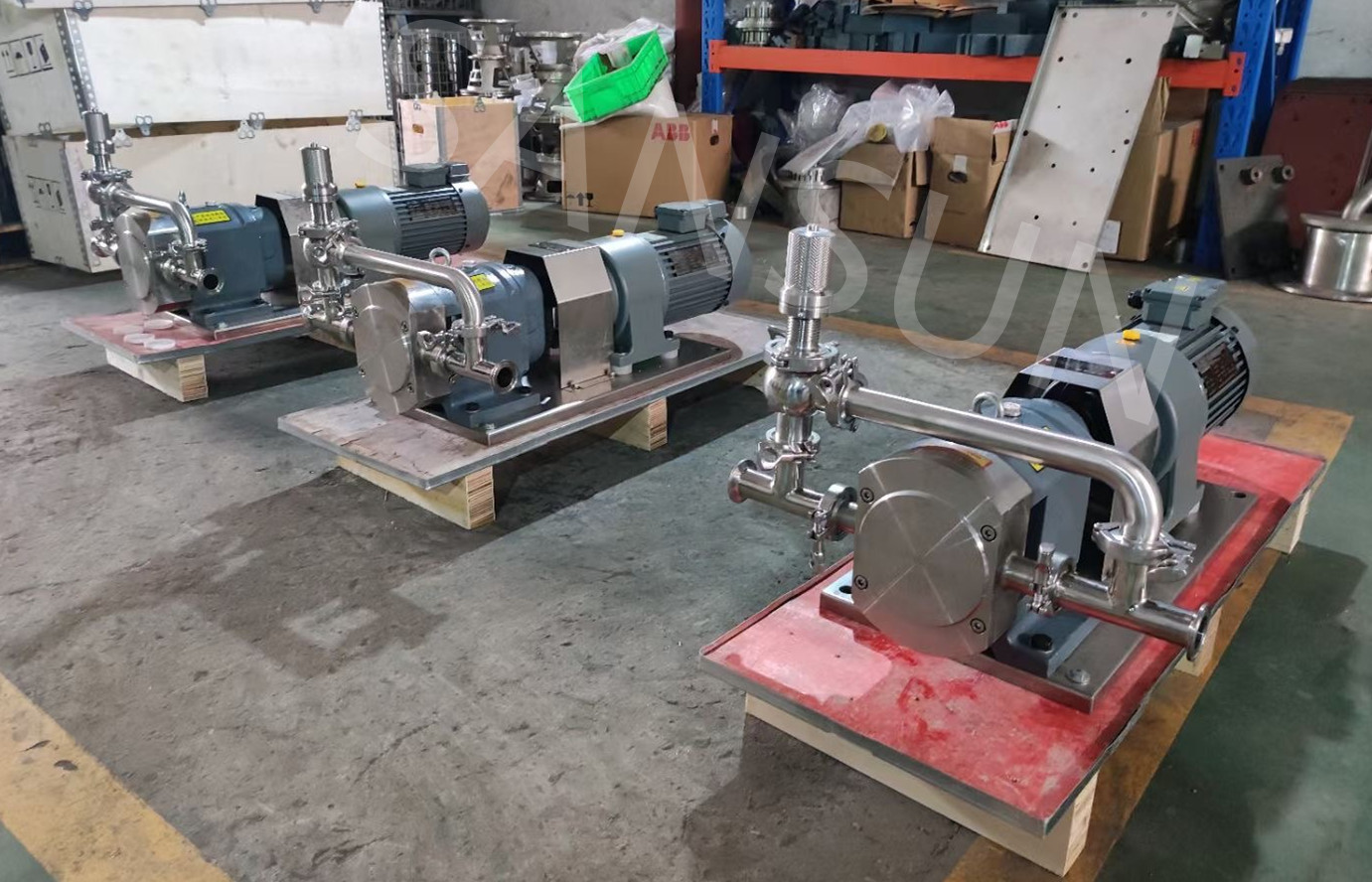

Sanitary rotary lobe pump with sanitary design suitable for use in the dairy, food-processing, beverage, cosmetics, pharmaceutical and fine chemicals industries.
This sanitary lobe pump is perfect for managing all kinds of fluid, of either low or high viscosity, as well as for filtering and bottling applications. Products containing fragile solids such as curd can be pumped without damage thanks to the specially designed lobes.

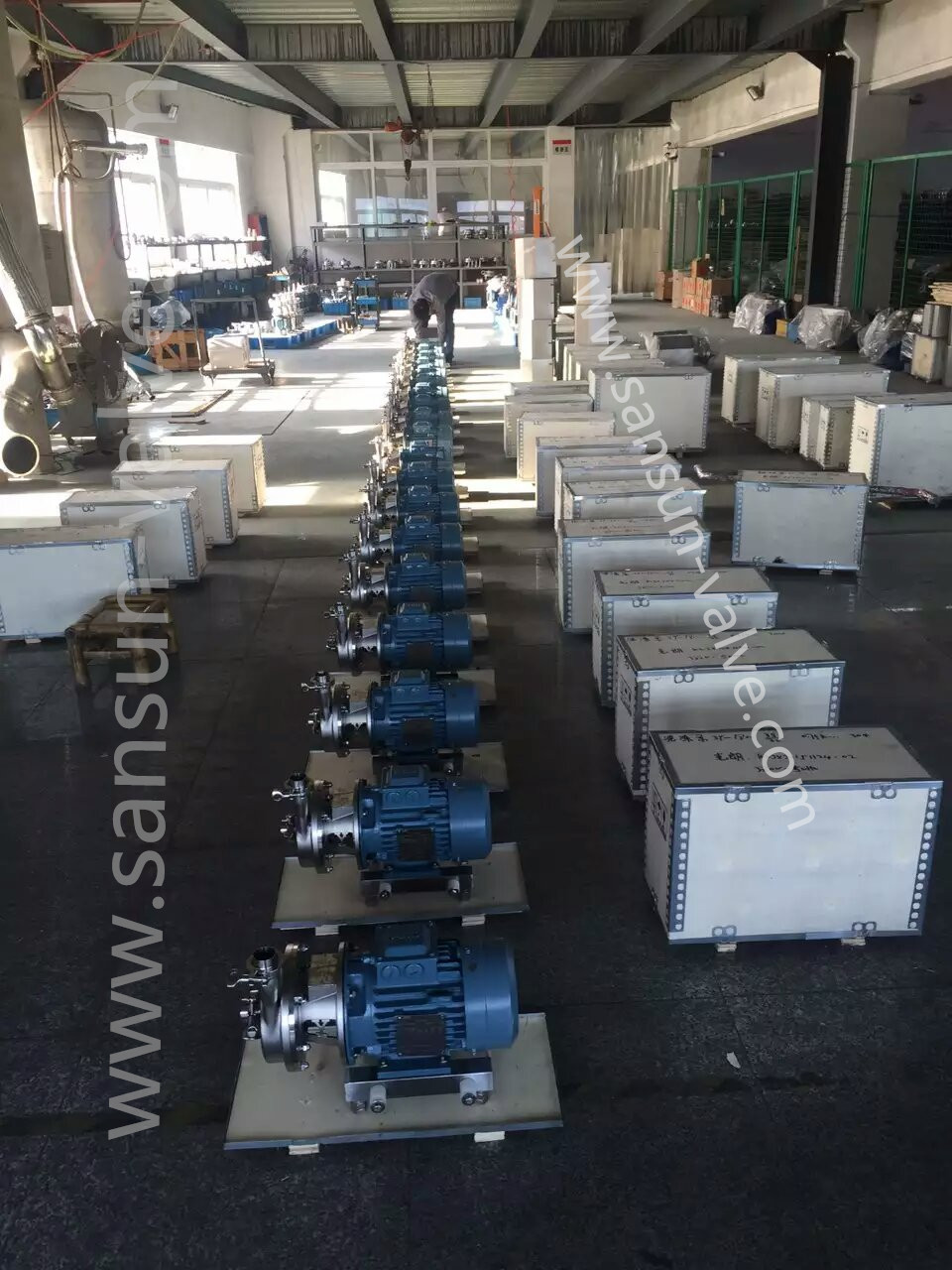

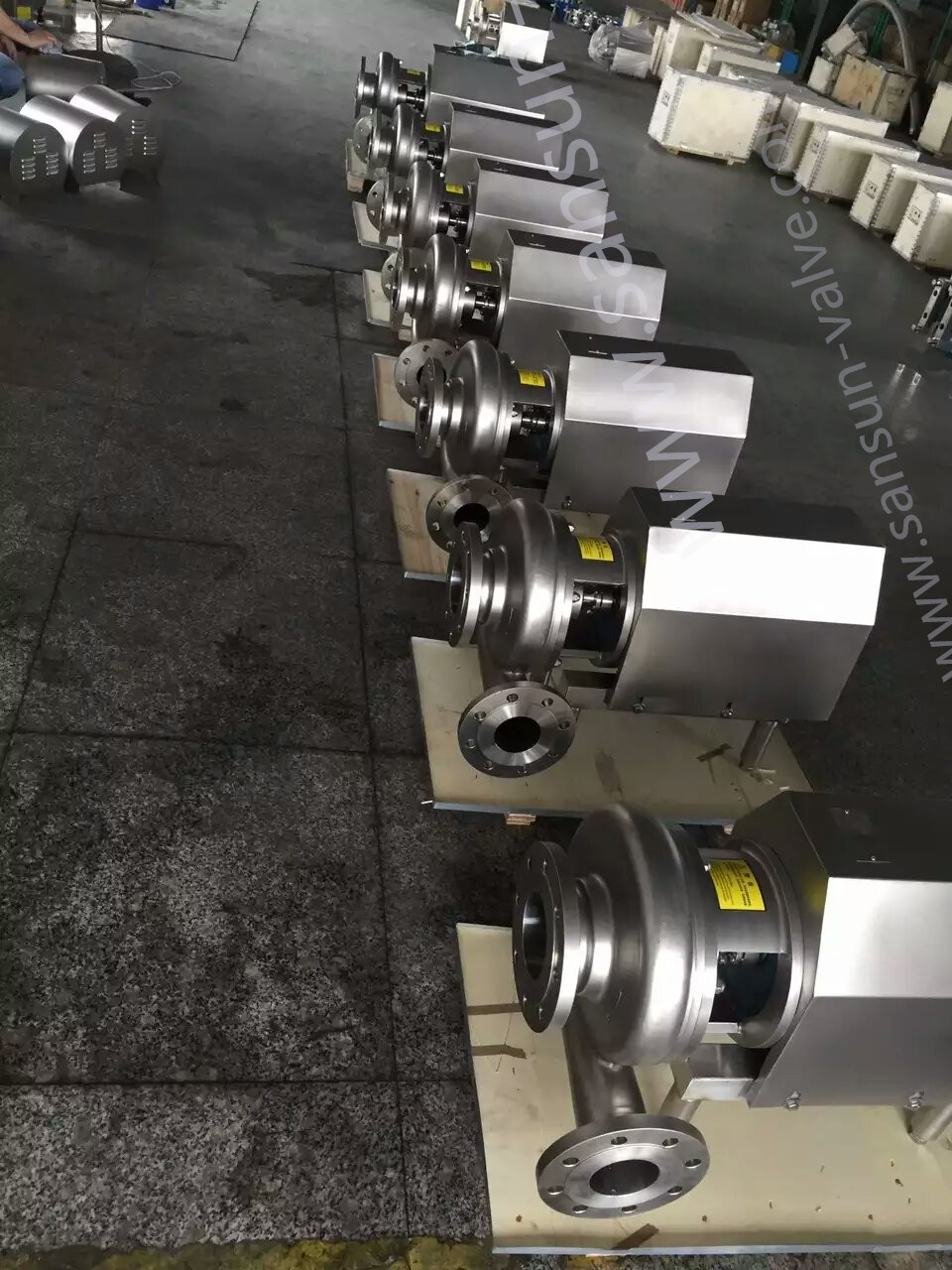

we also manufacturer of sanitarty centrifugal pumps.
We are manufacturer of hygienic centrifugal pumps and hygienic rotary lobe pump.
